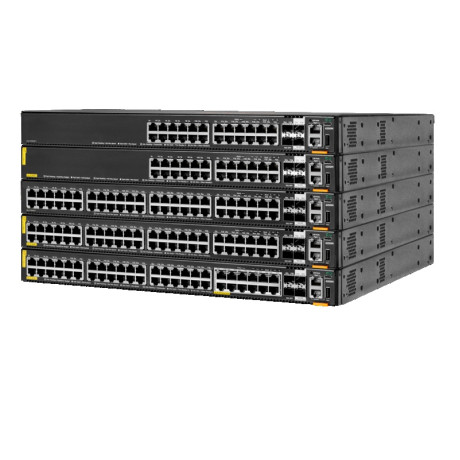

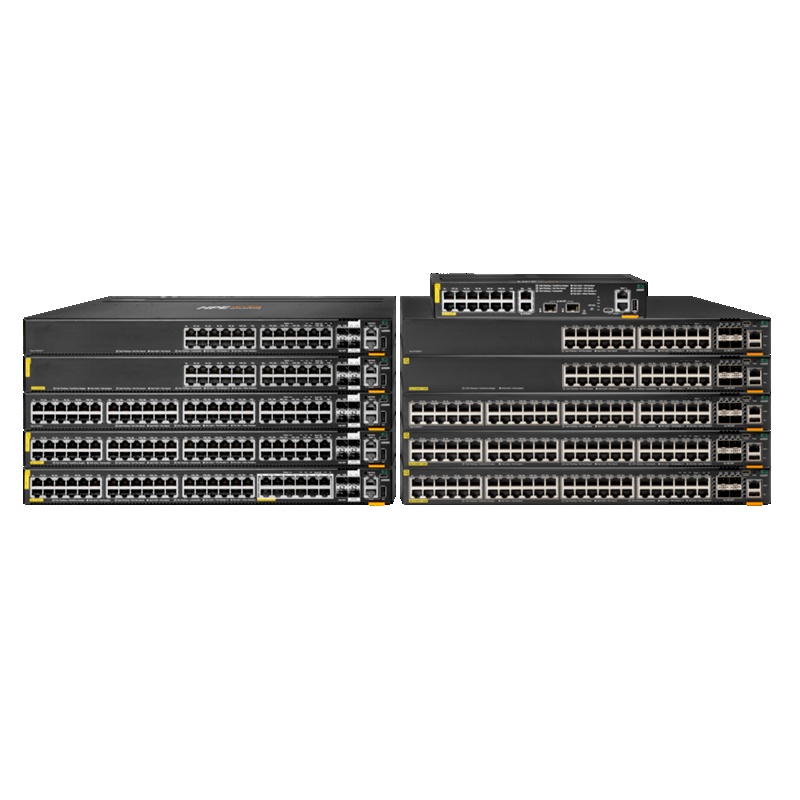

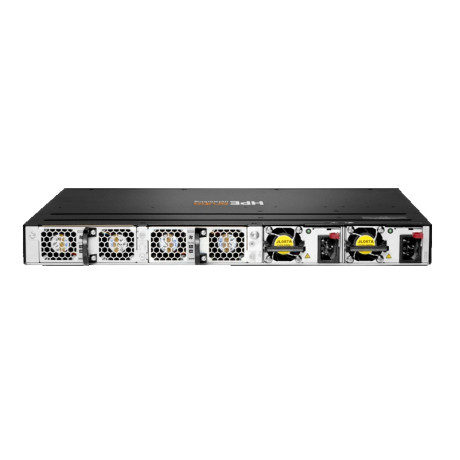

The HPE Aruba Networking Aruba 6200M 48G CL4 PoE 4SFP+ Switch is a high-performance, energy-efficient Layer 3 switch designed for enterprise campus and branch office deployments. It provides a comprehensive set of features including high-density PoE+, advanced Layer 3 routing capabilities, and robust security features to meet the demands of today's modern network. The switch supports a variety of connectivity options, allowing for seamless integration into existing network infrastructure. This model offers 48 ports of Gigabit Ethernet with PoE+ capability, along with four SFP+ uplink ports for high-speed connectivity to other network devices. It offers a variety of quality of service (QoS) features to prioritize critical traffic, ensuring optimal application performance.
This Aruba 6200M switch is managed through Aruba Central, a cloud-based management platform, providing simplified network management and monitoring capabilities. Aruba Central offers centralized management for multiple switches, simplifying network operations and reducing administrative overhead. The switch is designed for ease of deployment and operation, with features such as zero-touch provisioning and intuitive web-based management. The advanced security features help protect the network from unauthorized access and cyber threats. The energy-efficient design helps reduce operational costs, while the robust design ensures high availability and reliability. The Aruba 6200M is a versatile and powerful switch suitable for a wide range of network applications.
| I/O Expansions |
| Expansion Slot Type |
SFP+ |
| Number of SFP+ Slots |
4 |
| Total Number of Expansion Slots |
4.0 |
| Interfaces/Ports |
| Modular |
Yes |
| Network (RJ-45) |
Yes |
| Port/Expansion Slot Details |
48 x Gigabit Ethernet PoE, 4 x 10 Gigabit Ethernet Expansion Slot |
| Total Number of Network Ports |
48 |
| Uplink Port |
Yes |
| Management & Protocols |
| Manageable |
Yes |
| Media & Performance |
| Ethernet Technology |
Gigabit Ethernet, 10 Gigabit Ethernet |
| Media Type Supported |
Optical Fiber, Twisted Pair |
| Network Technology |
10/100/1000Base-T, 10GBase-X |
| Miscellaneous |
| Application/Usage |
Data Center, Branch Office, Business, Enterprise |
| Network & Communication |
| Layer Supported |
3 |
| Networking Standards |
IEEE 802.3, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x, IEEE 802.1ae, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1t, IEEE 802.3z |
| Power Description |
| Frequency |
50 Hz, 60 Hz |
| Input Voltage |
120 V AC, 230 V AC |
| Number of Power Supplies Supported |
2 |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
1.44 kW |
| Power Consumption |
76 W |
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
| General Information |
| Brand Name |
HPE |
| Manufacturer |
Hewlett Packard Enterprise |
| Manufacturer Part Number |
R8Q70A |
| Manufacturer Website Address |
http://www.hpe.com |
| Product Name |
6200M 48G Class4 PoE 4SFP+ Switch |
| Product Series |
CX 6200 |
| Product Type |
Ethernet Switch |
| Physical characteristics |
| Depth |
15.16" (385 mm) |
| Form Factor |
Rack-mountable, Surface Mount, Cabinet Mount |
| Height |
1.73" (44 mm) |
| Weight (Approximate) |
13.56 lb (6150 g) |
| Width |
17.40" (442 mm) |
