TZ500 Wireless-AC Base Appliance plus 1-Year 8x5 Support Appliances

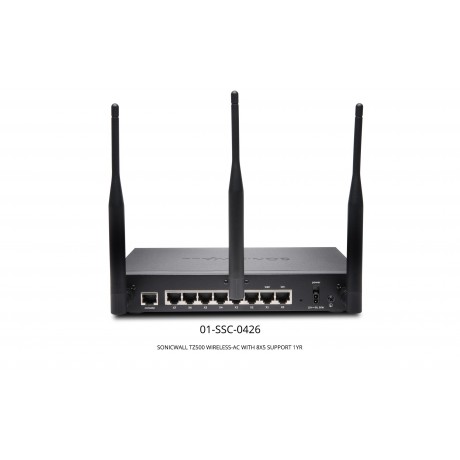

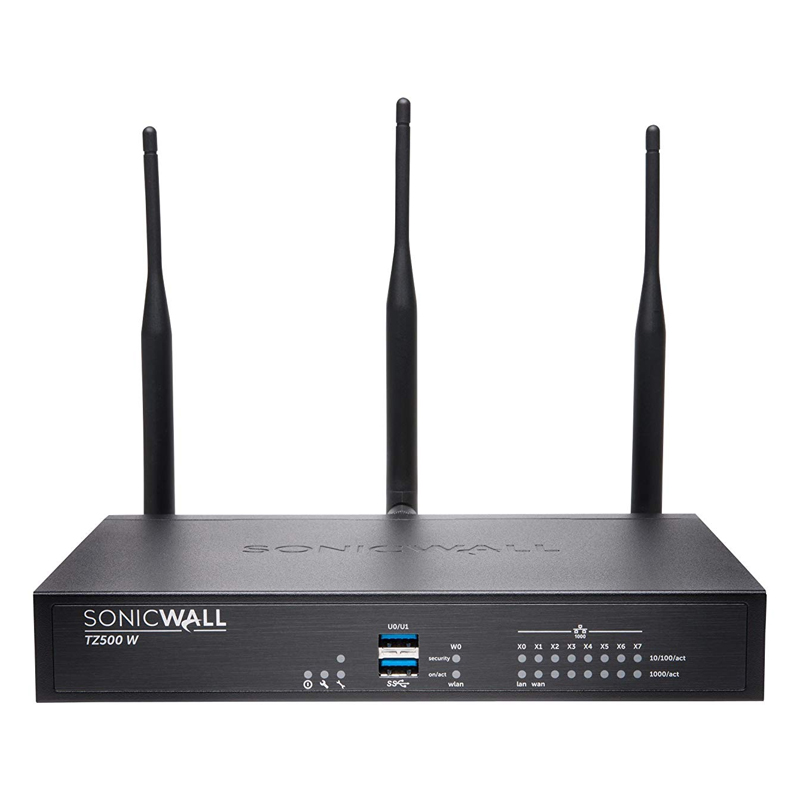

TZ500 Wireless-AC Base Appliance plus 1-Year 8x5 Support

Add to Cart for Price
Availability:In Stock

Available Options

For growing branch offices and SMBs, the SonicWall TZ500 series delivers highly effective, no-compromise protection with network productivity and optional integrated 802.11ac dual-band wireless.

The SonicWall TZ series of Unified Threat Management (UTM) firewalls is ideally suited for any organization that requires enterprise-grade network protection.

SonicWall TZ series firewalls provide broad protection with advanced Security services consisting of on-box and cloud-based anti-malware, anti-spyware, application control, intrusion prevention system (IPS), and URL filtering. To counter the trend of encrypted attacks, the TZ series has the processing power to inspect encrypted SSL/TLS connections against the latest threats. Combined with Dell X-Series switches, selected TZ series firewalls can directly manage the Security of these additional ports.

Backed by the SonicWall Capture Threat Network, the SonicWall TZ series delivers continuous updates to maintain a strong network defense against cybercriminals. The SonicWall TZ series is able to scan every byte of every packet on all ports and protocols with almost zero latency and no file size limitations.

The SonicWall TZ series features Gigabit Ethernet ports, optional integrated 802.11ac wireless, IPSec and SSL VPN, failover through integrated 3G/4G support, load balancing and network segmentation. The SonicWall TZ series UTM firewalls also provide fast, secure mobile access over Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS X and Linux platforms. The SonicWall Global Management System (GMS) enables centralized deployment and management of SonicWall TZ series firewalls from a single system.

Schools, retail shops, remote sites, branch offices and distributed enterprises need a solution that integrates with their corporate firewall. SonicWall TZ series firewalls share the same code base-and same protection-as our flagship SuperMassive next-GENeration firewalls. This simplifies remote site management, as every administrator sees the same USER interface (UI). GMS enables network administrators to configure, monitor and manage remote SonicWall firewalls through a single pane of glass. By adding high-speed, secure wireless, the SonicWall TZ series extends the protection perimeter to include customers and guests frequenting the retail site or remote office.

Download PDF datasheet for detailed product information Download PDF datasheet for included services
Manufacturer SonicWall
Wireless Yes
Years 1
Firewall General
Access Points Supported (maximum) 16
Expansion 2 USB
Interfaces 8x1GbE, 2 USB,1 Console
Management CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
Operating System SonicOS
Power Over Ethernet (PoE) Support No
Single Sign-On (SSO) Users 500
VLAN Interfaces 50
Firewall/VPN Performance
Anti-Malware Inspection Throughput 700 Mbps
Application Inspection Throughput 1.3 Gbps
Connections Per Second 8000
Firewall Inspection Throughput 1.4 Gbps
IPS Throughput 1.0 Gbps
IPSec VPN Throughput 1.0 Gbps
Maximum Connections (DPI SSL) 25000
Maximum Connections (DPI) 125000
Maximum Connections (SPI) 150000
Threat Prevention Throughput 700 Mbps
TLS/SSL Inspection And Decryption Throughput (DPI SSL) 200 Mbps
Dimensions 3.5 x 15 x 22.5 cm 1.38 x 5.91 x 8.86 in
Environment (Operating/Storage) 32.Deg-105.Deg F (0.Deg-40.Deg C)/-40.Deg to 158.Deg F (-40.Deg to 70.Deg C)
Form Factor Desktop
Humidity 5-95% non-condensing
Input Power 100-240 VAC, 50-60 Hz, 1 A
Maximum Power Consumption (W) 13.4 / 17.7
MTBF (in Years) 40.8
Power Supply 36W External
Shipping Weight 1.93 kg / 4.25 lbs 2.07 kg / 4.56 lbs
Total Heat Dissipation 45.9 / 60.5 BTU
WEEE Weight 1.34 kg / 2.95 lbs 1.48 kg / 3.26 lbs
Weight 0.92 kg / 2.03 lbs 1.05 kg / 2.31 lbs
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Certifications FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications Pending Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC) Supported
HA (High Availability) Active/Standby with stateful synchronization
IP Address Assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
Local User Database 250
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Routing Protocols BGP4, OSPF, RIPv1/v2, static routes, policy-based routing
VoIP Full H.323v1-5, SIP
Security Services
Application Control Yes
Application Visualization Yes
Capture Advanced Threat Protection Yes
Comprehensive Anti-Spam Service Supported
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Deep Packet Inspection Services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Certificate Support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
Global VPN Client Platforms Supported Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 11
IPSec VPN Clients (Maximum) 2 (25)
Key Exchange Diffie Hellman Groups 1, 2, 5, 14v
Mobile Connect Apple iOS, Mac OS X, Google Android, Kindle Fire, Chrome, Windows 8.1 (Embedded)
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Route-Based VPN RIP, OSPF, BGP
Site-to-Site VPN Tunnels 25
SSL VPN Licenses (Maximum) 2 (150)
Virtual Assist Bundled (Maximum) 1 (30-day trial)
VPN Features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
