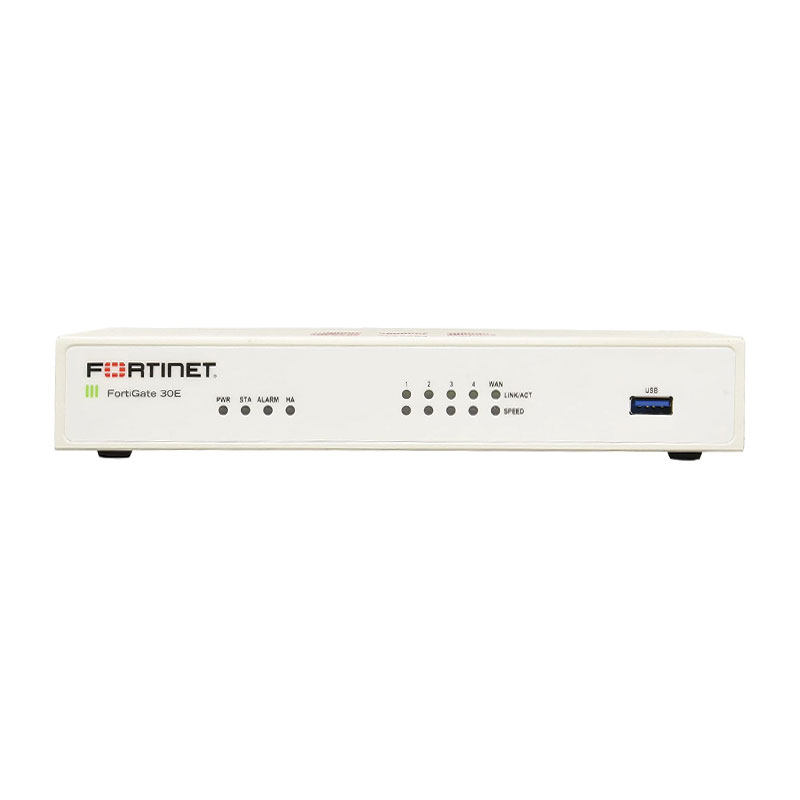

The FortiGate/FortiWiFi 30E are compact, cost effective, all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.
Download PDF datasheet for detailed product information
Download PDF datasheet for included services
| Compliance |
| Regulatory Compliance |
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Dimensions |
| Form Factor |
Desktop |
| Height X Width X Length (inches) |
1.61 x 8.27 x 5.24 |
| Height X Width X Length (mm) |
41 x 210 x 133 |
| Weight |
1.982 lbs (0.899 kg) 2.008 lbs (0.911 kg) |
| Environment |
| Heat Dissipation |
52 BTU/h |
| Humidity |
20-90% non-condensing |
| Maximum Current |
100V / 0.6A, 240V / 0.4A |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Operating Temperature |
32-104°F (0-40°C) |
| Power Consumption (Average / Maximum) |
13 / 15 W |
| Power Required |
100-240V AC, 60-50 Hz(External DC Power Adapter) |
| Storage Temperature |
-31-158°F (-35-70°C) |
| Hardware Specifications |
| Console (RJ45) |
1 |
| GE RJ45 Switch Ports |
4 |
| GE RJ45 WAN Port |
1 |
| Internal Storage |
16 GB |
| USB Port |
1 |
| System Performance |
| CAPWAP Throughput |
950 Mbps |
| Client-to-Gateway IPsec VPN Tunnels |
250 |
| Concurrent Sessions (TCP) |
900,000 |
| Concurrent SSL-VPN Users (Recommended Maximum) |
80 |
| Firewall Policies |
5,000 |
| Firewall Throughput |
950 Mbps |
| Firewall Throughput (Packets Per Second) |
180 Kpps |
| Gateway-to-Gateway IPsec VPN Tunnels |
20 |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| IPS Throughput (HTTP / Enterprise Mix) |
600 / 240 Mbps |
| IPsec VPN Throughput (512 Byte Packets) |
75 Mbps |
| Maximum Number Of FortiAPs (Total / Tunnel Mode) |
2 / 2 |
| Maximum Number Of FortiTokens |
20 |
| Maximum Number Of Registered FortiClients |
200 |
| New Sessions/Second (TCP) |
15,000 |
| NGFW Throughput |
150 Mbps |
| SSL Inspection Throughput |
200 Mbps |
| SSL-VPN Throughput |
35 Mbps |
| Virtual Domains (Default / Maximum) |
5 / 5 |
