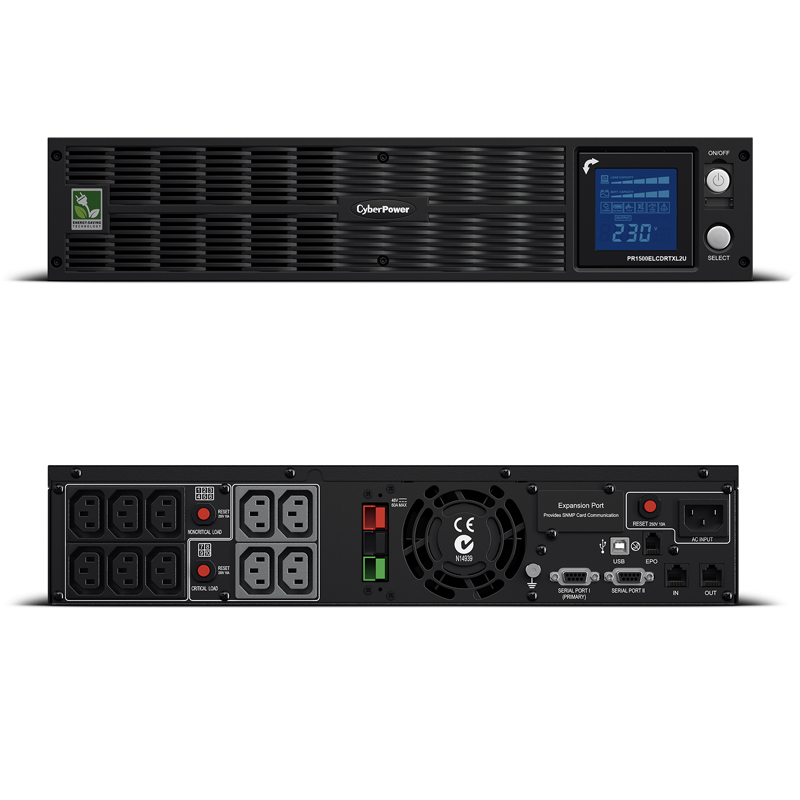

A high-voltage rack/tower convertible UPS with line interactive topology and an adjustable output of either 220, 230 or 240 VAC, the CyberPower Smart App Sinewave PR1500ELCDRTXL2U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility.
The PR1500ELCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1500ELCDRTXL2U comes with a $400,000 Connected Equipment Guarantee.
Typical Applications
- Corporate Servers
- Department Servers
- Storage Applications
- Network Devices
- Telecom Installations
Features
- 1500VA / 1125W
- Configurable 220/230/240 VAC input/output
- Line-Interactive Topology
- Full AVR Buck/Boost & GreenPower UPS
- 2U Rack Mount/Tower Convertible
- Multifunction Rotatable LCD
- SNMP/HTTP Remote Management Option
- 10 Outlets / USB, Serial,and EPO Ports
- PowerPanel Business Edition Software
| Battery |
| Battery Quantity |
4 |
| Battery Size |
12V/9Ah |
| Battery Type |
Sealed Lead-Acid |
| Extended Battery Option |
BP48V75ART2U |
| Hot-Swappable |
Yes |
| Replacement Battery Cartridge |
RB1290X4F |
| Replacement Battery Cartridge Quantity |
1 |
| Runtime At Full Load |
5 Minutes |
| Runtime At Half Load |
14 Minutes |
| Typical Recharge Time |
Less than 6 hours (90% charged) |
| User Replaceable |
Yes |
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1778.cUL 107.1.FCC DOC Class B |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| General |
| Energy Saving |
GreenPower UPS Bypass |
| UPS Topology |
Line Interactive |
| Input |
| Cord Length |
10 ft |
| Frequency Range |
47 |
| Plug Style |
Right Angle, 45.Deg Offset Right |
| Plug Type |
NEMA 5-15P |
| Voltage |
80 |
| Management & Communications |
| AS400 Management |
None |
| Audible Alarms |
Input Fault.Battery Fault.Low Battery.Overload. |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| Led Indicators |
Power On.Wiring Fault |
| Multifunction LCD Panel |
Displays |
| Serial Port |
Yes (2x) |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD205 |
| Software |
PowerPanel Business Edition |
| Output |
| Automatic Voltage Regulation |
Boost 1 +30%, Boost 2 +14% / Buck -12% |
| On Battery Frequency |
50/60 Hz |
| On Battery Voltage |
120 VAC |
| On Battery Waveform |
Sine Wave |
| Outlet Type |
NEMA 5-15R |
| Overload Protection |
Internal Circuitry Limiting.Circuit Breaker |
| Transfer Time |
4 ms |
| VA |
1,500 VA |
| Watts |
1,500 W |
| Physical |
| Form Factor |
Rack/Tower |
| Rack Size |
2U |
| Weight (lbs) |
70.0 lbs |
| Surge Protection & Filtering |
| Coaxial Protection RG6 |
1-In, 1-Out |
| EMI/RFI Filtration |
Yes |
| Phone RJ11 / Ethernet RJ45 |
1-In, 1-Out (Combo) |
| Surge Suppression |
2,060 J |
| Warranty |
| CEG Amount |
400000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
3 Years Limited |
