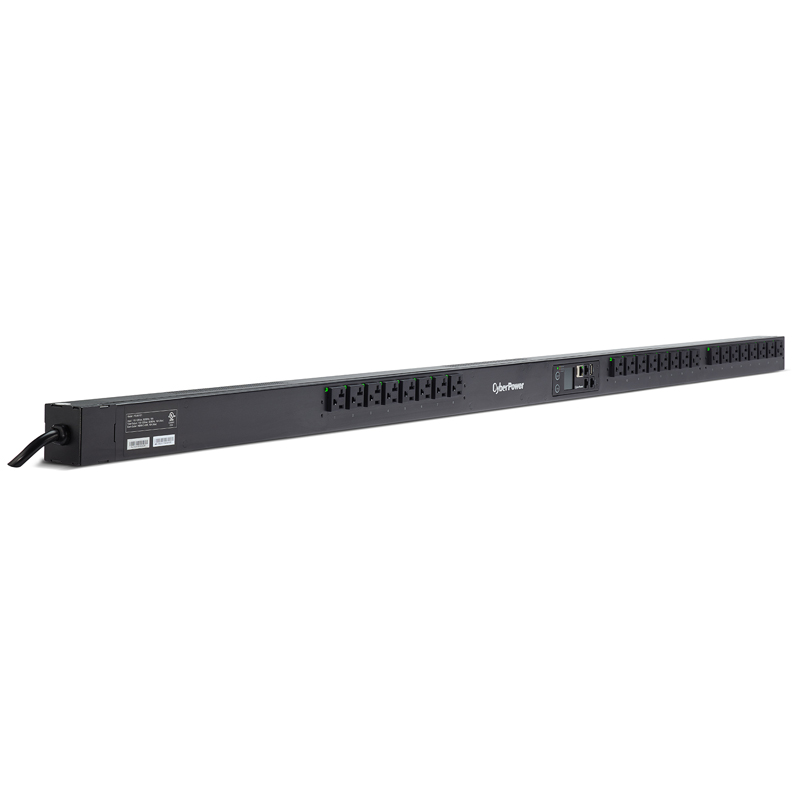

The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
The PDU41101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three Years of the purchase date.
TYPICAL APPLICATIONS
- Data Centers
- Network Closets
- VoIP Phone Systems
FEATURES
- Switched PDU
- Local and Network Outlet Switching
- SNMP Network Interface
- Controlable Receptacles
- Industrial-Grade Metal Housing
- Three-Year Warranty
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL 60950, FCC Class A |
| Environmental |
| Maximum Operating Elevation |
11,483 ft (3,500 m) |
| Operating Humidity |
0% - 95% non-condensing |
| Operating Temperature |
32 |
| General |
| Phase |
Single Phase |
| Type |
Switched |
| Input |
| Cord Length |
10 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
20A (derated to 16A) |
| Plug Style |
Straight |
| Plug Type |
NEMA (L)5-20P |
| Voltage |
100 - 120 V |
| Management & Communications |
| Network Connection |
RJ45 (Ethernet), RJ45 (COM Port) |
| Outlet Switching |
Yes |
| SNMP / HTTP Remote Monitoring |
IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS,Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs,SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD |
| Output |
| LED Indicators |
N/A |
| Meter Readout |
Power Control Display |
| Nominal Output Voltage |
100 - 120 V |
| Outlet Type |
NEMA 5-20R |
| Outlets - # Of Banks |
1 |
| Outlets - Front |
24 |
| Outlets - Total |
24 |
| Overload Protection (Each Bank) |
None |
| Physical |
| Adjustable Mounting Brackets |
1 set |
| Cord Retention Tray/Cord Organizers |
Yes |
| Enclosure Construction |
Steel |
| External Site Ground Pin |
Yes |
| Standard Form Factor |
0U |
| Style |
Vertical Rackmount, Wallmount |
| Physical Size |
| Dimensions (WxHxD) (in.) |
7.28 x 74.61 x 4.57 |
| Shipping Dimensions |
PDU41101 |
| Weight (lbs.) |
18.96 |
| Warranty |
| Ext Warranty |
WEXT5YR-PDU1B |
| Product Warranty |
3 Years |
