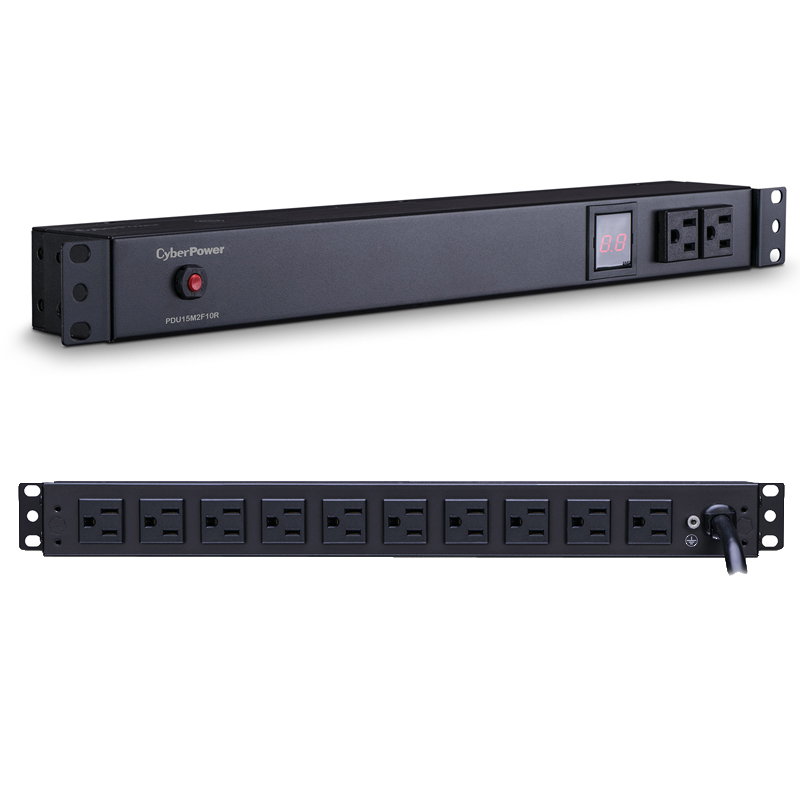

The CyberPower 12-outlet (2 Front and 10 Rear) rack mount metered power distribution unit (PDU15M2F10R) provides 120V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
FEATURES
- Metered PDU
- Real-Time Load Monitoring
- Industrial-Grade Metal Housing
- Lifetime Warranty
Download PDF datasheet for detailed product information
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1363 certified by ETL.CSA C22.2 |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 - 95% (non-condensing) |
| Operating Temperature |
32 - 95 |
| Storage Temperature |
5 - 113 |
| Input |
| Cord Length |
15 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
15A (derated to 12A) |
| Plug Style |
Straight |
| Plug Type |
NEMA 5-15P |
| Voltage |
100 - 125 V |
| Output |
| Meter Readout |
Amperage |
| Nominal Output Voltage |
100 - 125 V |
| Outlet Type |
NEMA 5-15R |
| Outlets - Front |
2 |
| Outlets - Rear |
10 |
| Outlets - Total |
12 |
| Overload Protection |
15A |
| Physical |
| Adjustable Mounting Brackets |
2 sets (L-short, L-long) |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
1U rackmount,0U vertical rackmount,undercounter installation supported |
| Rack Size |
1U |
| Style |
Rackmount,Vertical Rackmount, Under-Counter |
| Weight (lbs) |
4.0 lbs |
| Warranty |
| Product Warranty |
Limited lifetime |
